MonoDAQ® in action

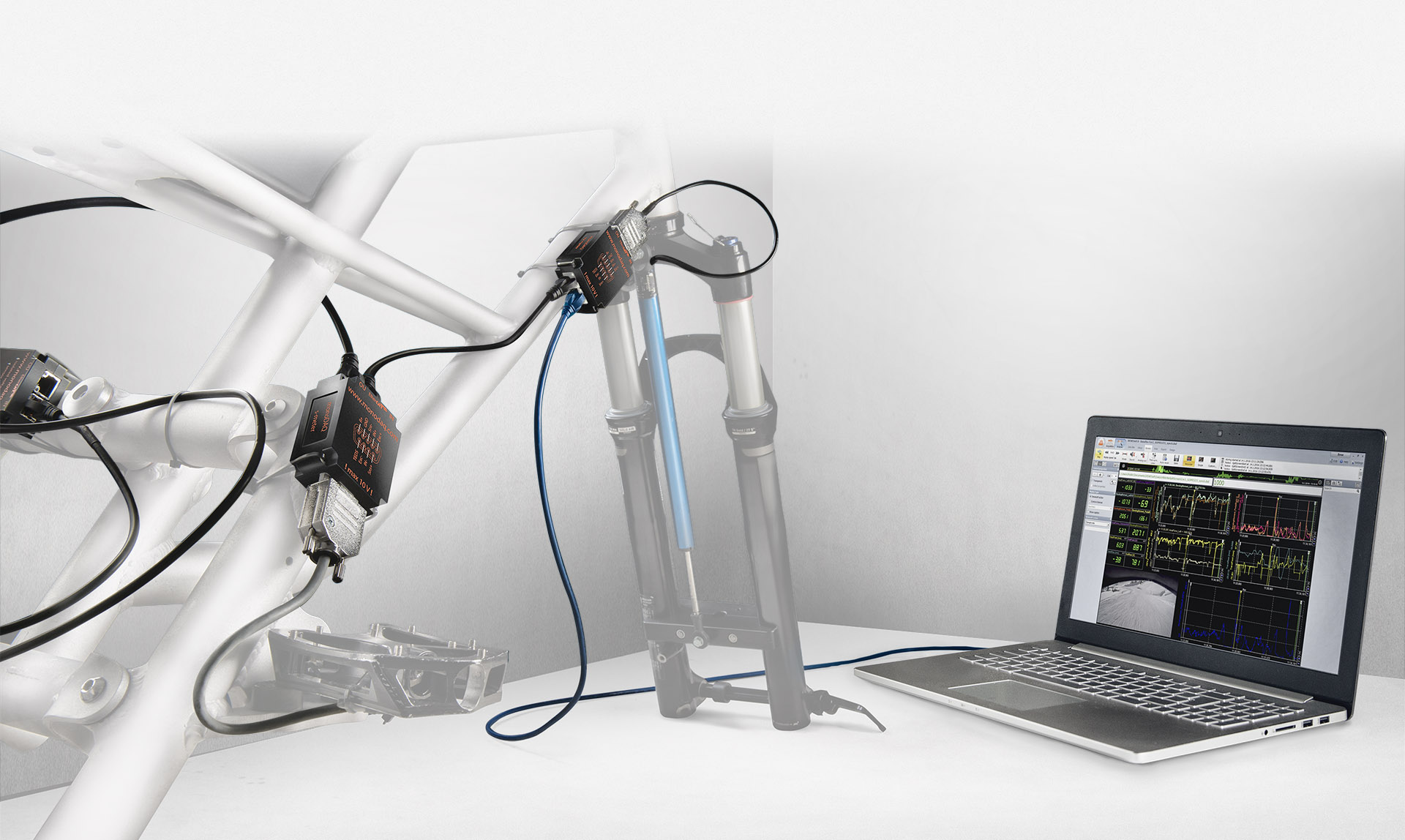

Mount the modules next to your sensors, ensuring perfect signal conditioning. Connect them via a standard UTP cable for data, synchronization and power – and you are ready to measure!
Monodaq
EtherCAT modules
Choose the right amplifiers for your sensors and digital modules for test control.
V-Meter

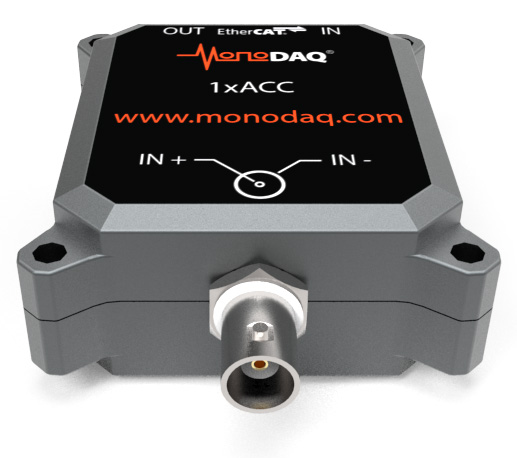

E-ACC
Isolated IEPE sensor interface
| ADC | 24 bit |
| Sample rate | 1 kS/s |
| Input range | ±10, 5, 1, 0.2 V |
| IEPE current | 4 mA |
| HP filter | DC, 0.1 Hz, 1 Hz |
| TEDS | ✓ |
VX - Meter

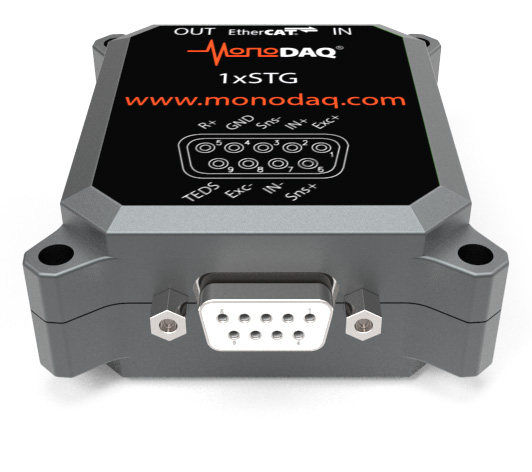

E-STG
Isolated strain gauge amplifier
| ADC | 24 bit |
| Sample rate | 1 kS/s |
| Input range | ±50, 10, 1, 0.1 V, 20 mA |
| Bridge | Full, half, quarter |
| Excitation | 0..24 V, 22 mA |
| TEDS | ✓ |
G - Meter

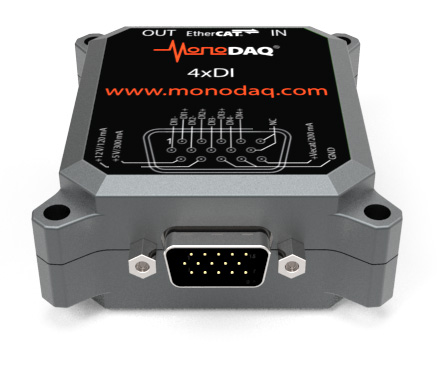

E-DI4
Isolated digital inputs
| Channels | 4 |
| Sample rate | 1 kS/s |
| Type | TTL/CMOS |
| Max. level | 30 V |
| Sensor supply | 5 V, 12 V, ECAT |
| Isolation | Ch-Ch, Ch-Gnd |
BIT - Meter

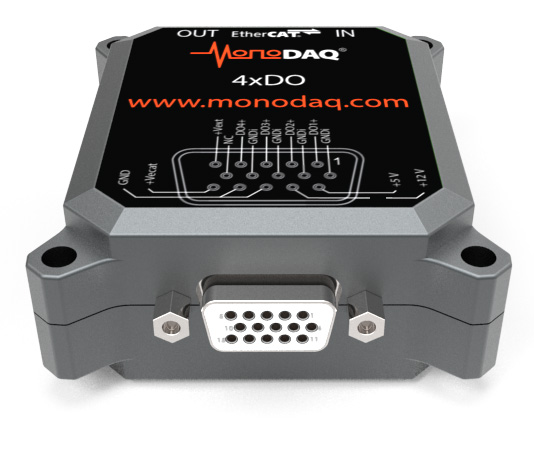

E-DO4
High current digital output
| Channels | 4 |
| Sample rate | 1 kS/s |
| Type | Open collector |
| Max. current | 2 A |
| Supply voltage | 5 V, 12 V, ECAT |
| Isolation | Ch-Gnd |
V-Meter

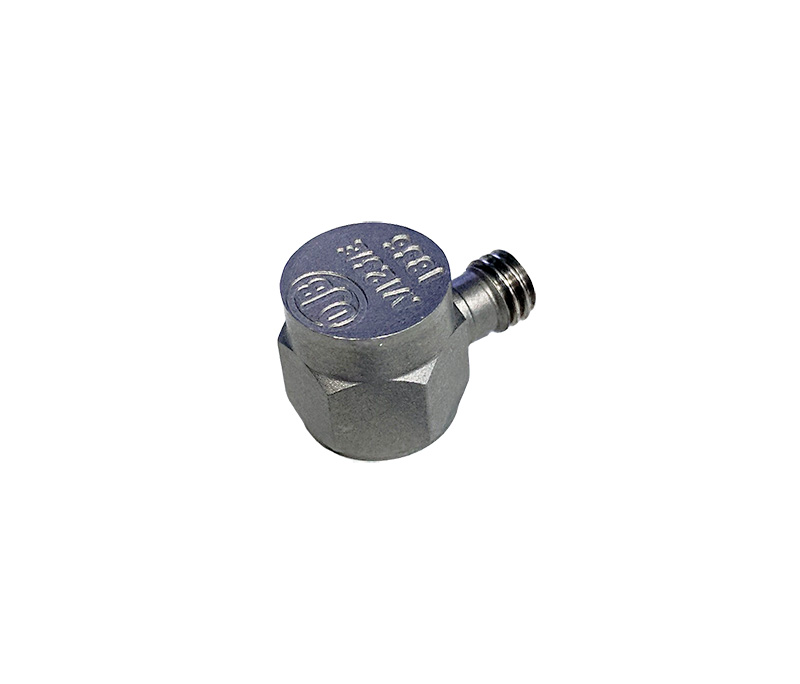

DJB A/120/V
IEPE accelerometer
| Sensitivity | 10 mV/g | 1 V/g |
| Noise level eq. | 5 mg | 3 mg |
| HP filter | 0.1 Hz | 1 Hz |
| Saturation limit | 500 g | 50 g |
| Resonant frequency | 28 kHz |
| Weight | 12.5 gm |
VX - Meter

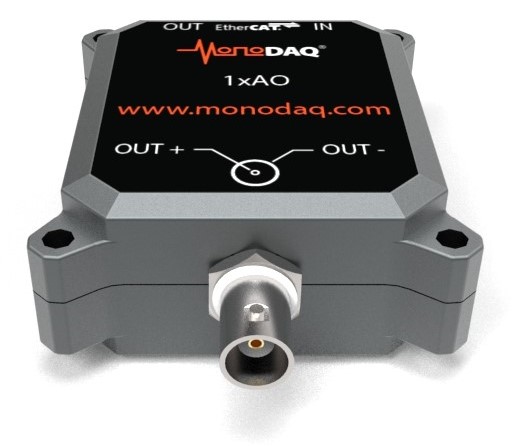

E-AO
Low-latency analog output
| DAC resolution | 18 bit |
| Sample rate | 1 kS/s |
| Output range | ±10 V |
| Max. current | 20 mA |
| Max. load | 500 Ohm |
| Max. capacitive load | 20 pF |
G - Meter

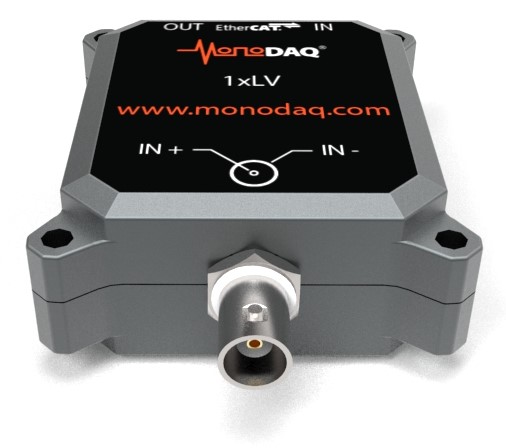

E-LV
Isolated wide range voltage input
| ADC | 24 bit |
| Sample rate | 1 kS/s |
| Input range | ±50, ±10, ±1, ±0.2 V |
| Isolation | 125 Vrms |
| SNR | 90 dB |
| THD | -90 dB |
BIT - Meter
40 kS/sec sample rate
Firmware upgrade to 40 kS/s
| Sample rate | 40 kS/s |
| Applicable to | 1xACC, 1xSTG, 1xLV |
Cabling revolution
Reduce cabling cost by 10x for 5 sensors spaced 5 m apart
Instead of running long analog cables from each sensor to a multi-channel device, single channel instruments are daisy chained by an affordable network cable.
Real world case: you have to wire 5 sensors placed in a line at every 5 meters. How much will the cabling cost you?
CONVENTIONAL 5-CHANNEL INSTRUMENT
60 m of analog cable (without connectors)
~ 200 EUR
5X MONODAQ® MODULE
20 m of UTP cable (connectors included)
~ 20 EUR (10x less!)
Dewesoft X
It’s not just a software
MonoDAQ® comes bundled with award-winning DEWESoft X software.Connect your MonoDAQ® modules and you are ready to measure. Instruments and TEDS-equipped sensors are automatically detected.
Learn more about DEWESoft X
Measure
Plug and Play
MonoDAQ® modules are automatically detected by the software. Setting up the measurement (range, excitation, sensor calibration etc.) is done in no time.
Customize
Flexible Displays
Choose from various types of recorders, scopes, 3D graphs and other visual displays. Drag and drop functionality allows quick customization of your measurement screen.
Store
Recording and storing
DEWESoft X streams all of your analog, digital and live math channels directly to the drive. Several triggering conditions are available for storing options.
Analyze
Advanced data analysis
Post-process recorded data to aid design and quality of your product. DEWESoft X has built in analysis functions like FFT, statistics and IIR/FIR filters. Reporting and export tools are also available.
