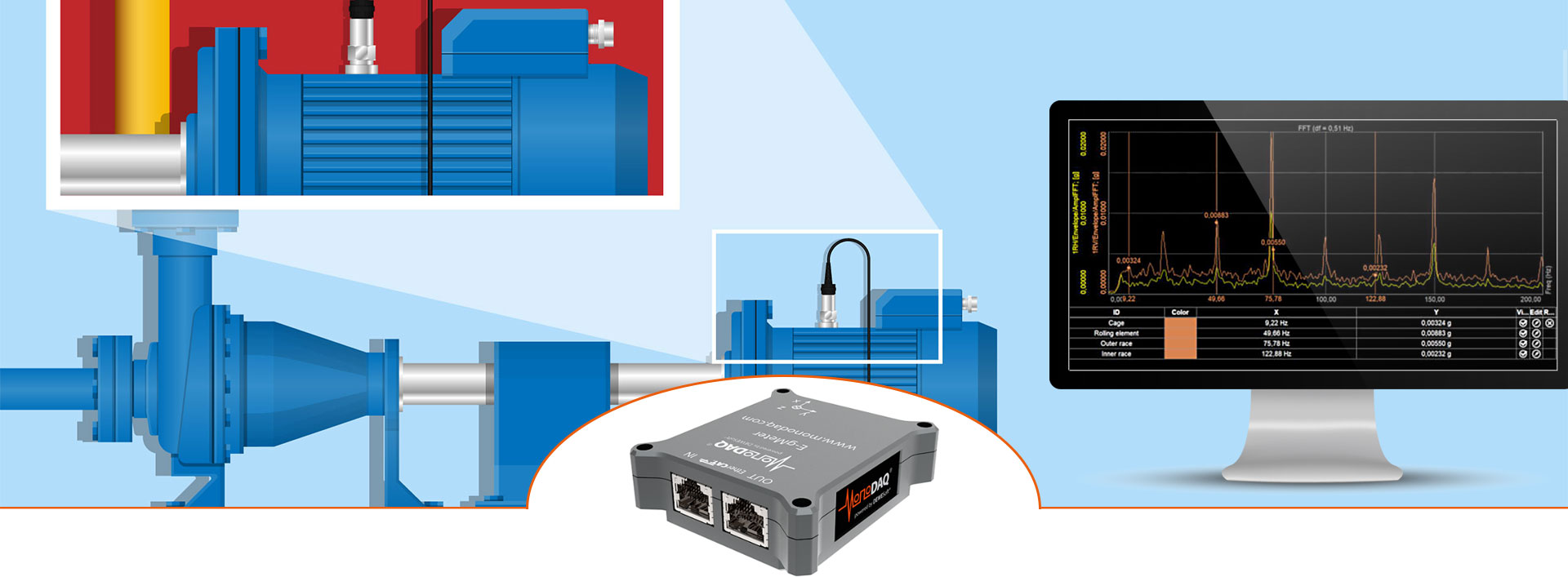

A unique data acquisition solution for Condition Based Monitoring.
It enables users to detect bearing faults as well as predict maintenance cycles.

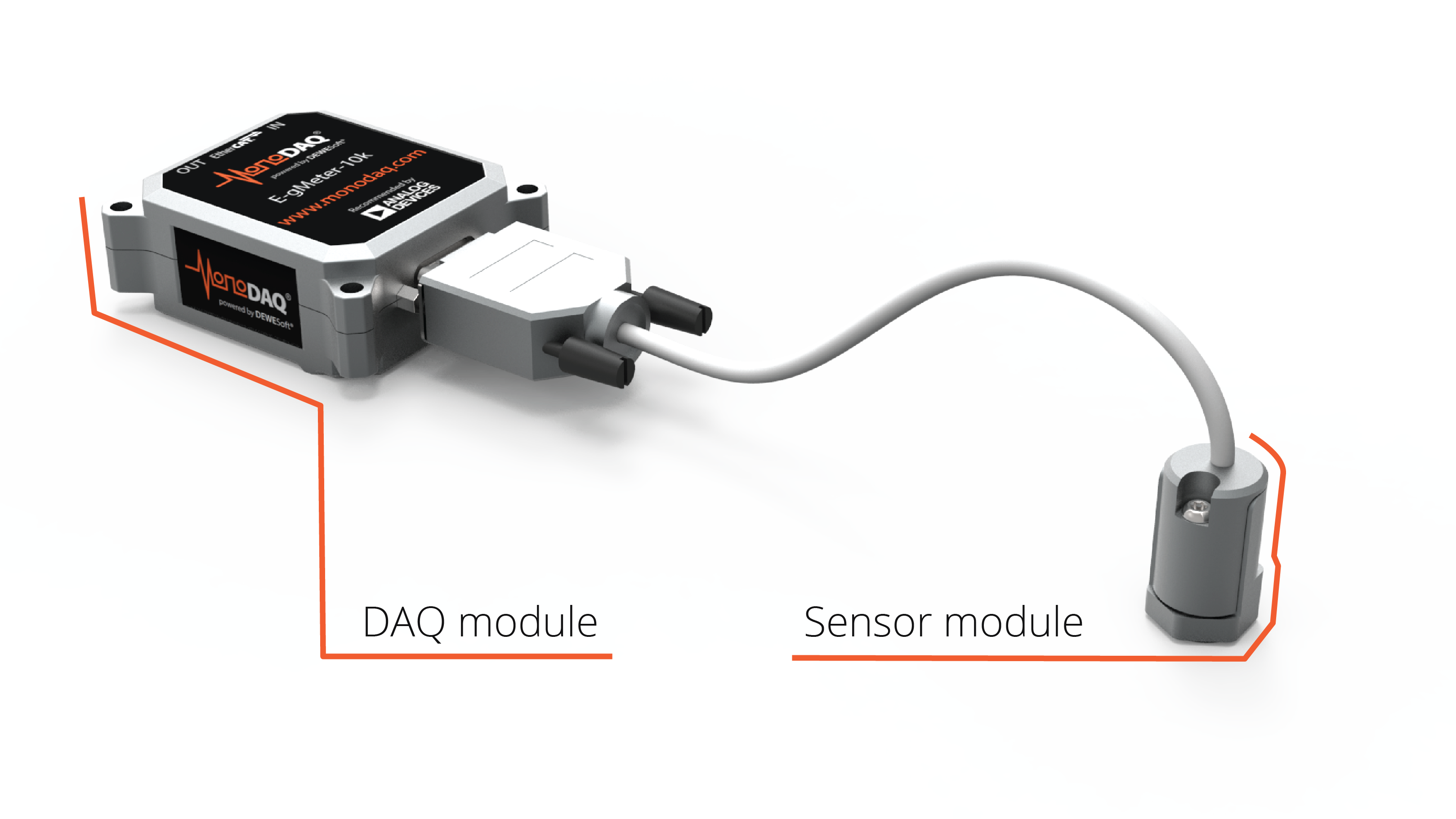

MonoDAQ-E-gMeter-10k is a vibration and temperature measurement device consisting of a small, low-weight sensor module and a data acquisition module. The sensor box includes a 0-10 kHz bandwidth low-noise 1-axis vibration sensor, a temperature sensor and a 3-axial low speed MEMS accelerometer for orientation identification. The data acquisition node includes the A/D conversion, analog and digital filtering and EtherCAT slave interface.

MonoDAQ-E-gMeter-10k  condition based monitoring solution hardware:
MonoDAQ-E-gMeter-10k is housed in a robust aluminium housing with two EtherCAT ports on the back aimed at powering and dasy chaining of multiple devices.

MonoDAQ-E-gMeter10k contion based monitoring general specifications:

  • 0-10 kHz bandwidth, 50 g range, 25 μg√Hz noise density
  • EtherCAT bus, daisy-chaining with single cable up to 50 m device-device
  • DEWESoft X3 software support

Download full datasheet

MonoDAQ-E-gMeter-10k condition based monitoring software: MonoDAQ-E-gMeter-10k is fully integrated into DEWESoft X3 data acquisition and analysis software for Windows. Each device includes the DEWESoft LT-license. No special configuration is necessary to start acquiring the data as the device is automatically recognized. The software package consists of numerous prebuilt functions that require no programming by the user:

  • Time / XY recorder
  • FFT recorder
  • Scope recorder
  • Triggered storing
  • Video acquisition
  • Statistics (RMS, peak-peak, STDV etc.)

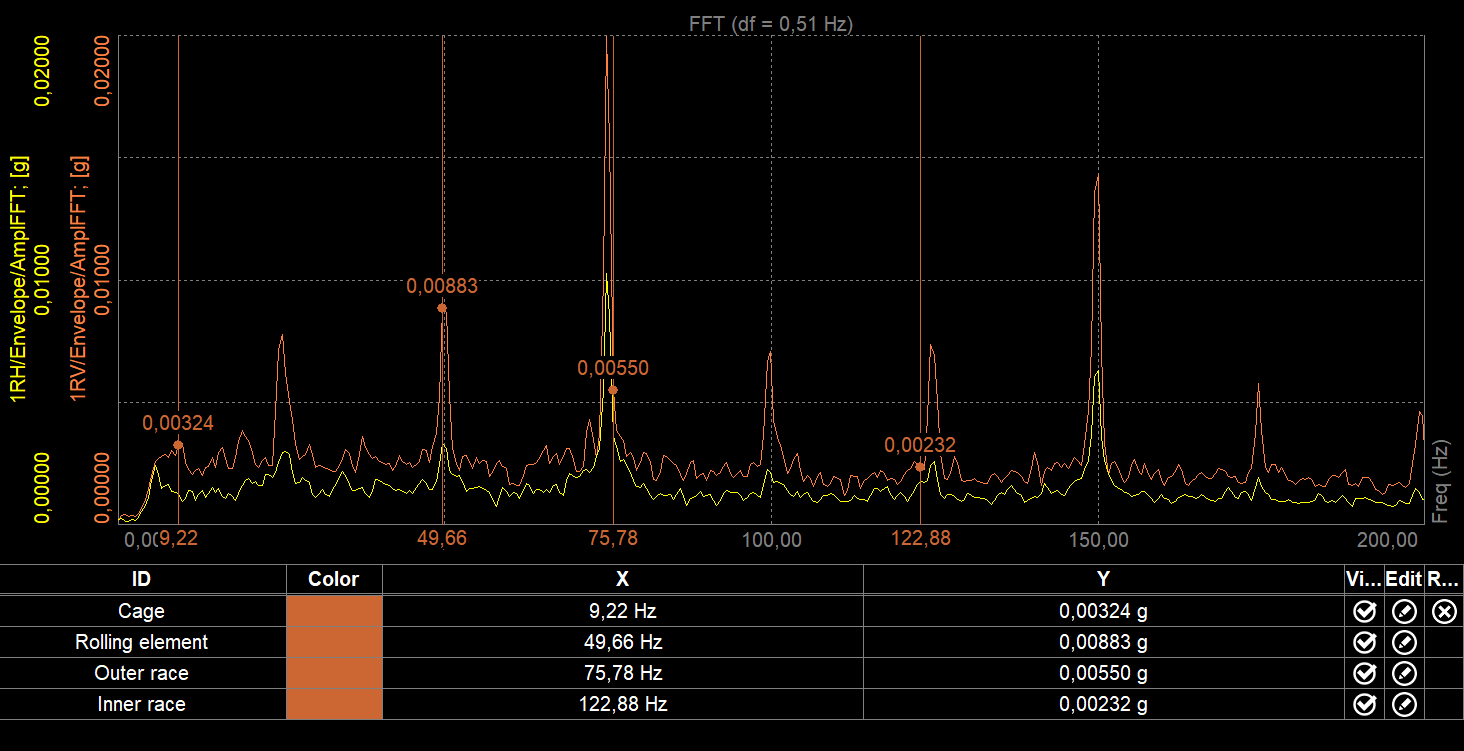

Subject to additional licenses there are advanced analysis modules available like envelope detection for bearing fault analysis. The module performs envelope detection on the acceleration signal, shows the FFT of the envelope and compares the peaks to the bearing database. The bearing database is included or it can be upgraded with new data by the user.

Learn more about DEWESoft X3

Typical applications:

  • Condition Based Monitoring/Predictive maintenance
  • Vibration and temperature monitoring
  • Bearing fault detection

MonoDAQ-E-gMeter10k

Vibration and temperature measurement device! Perfect for Machine Condition Monitoring

Is a unique data acquisition solution for Condition Based Monitoring.
It enables users to detect bearing faults as well as predict mainenance cycles.

MonoDAQ-E-gMeter10k is a vibration and temperature measurement device consisting of a small, low-weight sensor module and a data acquisition module. The sensor box includes a 0-10 kHz bandwidth low-noise 1-axis vibration sensor, a temperature sensor and a 3-axial low speed MEMS accelerometer for orientation identification. The data acquisition node includes the A/D conversion, analog and digital filtering and EtherCAT slave interface.

MonoDAQ-E-gMeter10k  contion based monitoring solution, Hardware: MonoDAQ-E-CBM is housed in an robust aluminum housing with two EtherCAT ports on the back aimed for powering and dasy chaining of multiple devices.

MonoDAQ-E-gMeter10k contion based monitoring General specifications:

  • 0-10 kHz bandwidth, 50 g range, 25 μg√Hz noise density
  • EtherCAT bus, daisy-chaining with single cable up to 50 m device-device
  • DEWESoft X3 software support

Download full datasheet


MonoDAQ-E-gMeter10k
condition based monitoring Software: MonoDAQ-E-gMeter10k is fully integrated into DEWESoft X3 data acquisition and analysis software for Windows. Each device includes the DEWESoft LT-license. No special configuration is necessary to start acquiring the data as the device is automatically recognized. The software package consists of numerous prebuilt functions that require no programming by the user:

  • Time / XY recorder
  • FFT recorder
  • Scope recorder
  • Triggered storing
  • Video acquisition
  • Statistics (RMS, peak-peak, STDV etc.)

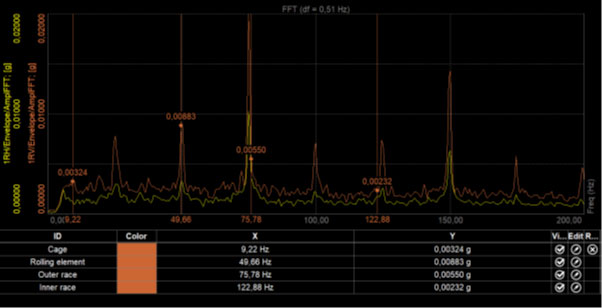

Subject to additional licenses there are advanced analysis modules available like envelope detection for bearing fault analysis. The module performs envelope detection on the acceleration signal, shows the FFT of the envelope and compares the peaks to the bearing database. The bearing database is included or it can be upgraded with new data by the user.

Learn more aboutDEWESoft X3

Typical applications:

  • Condition Based Monitoring/Predictive maintenance
  • Vibration and temperature monitoring
  • Bearing fault detection
